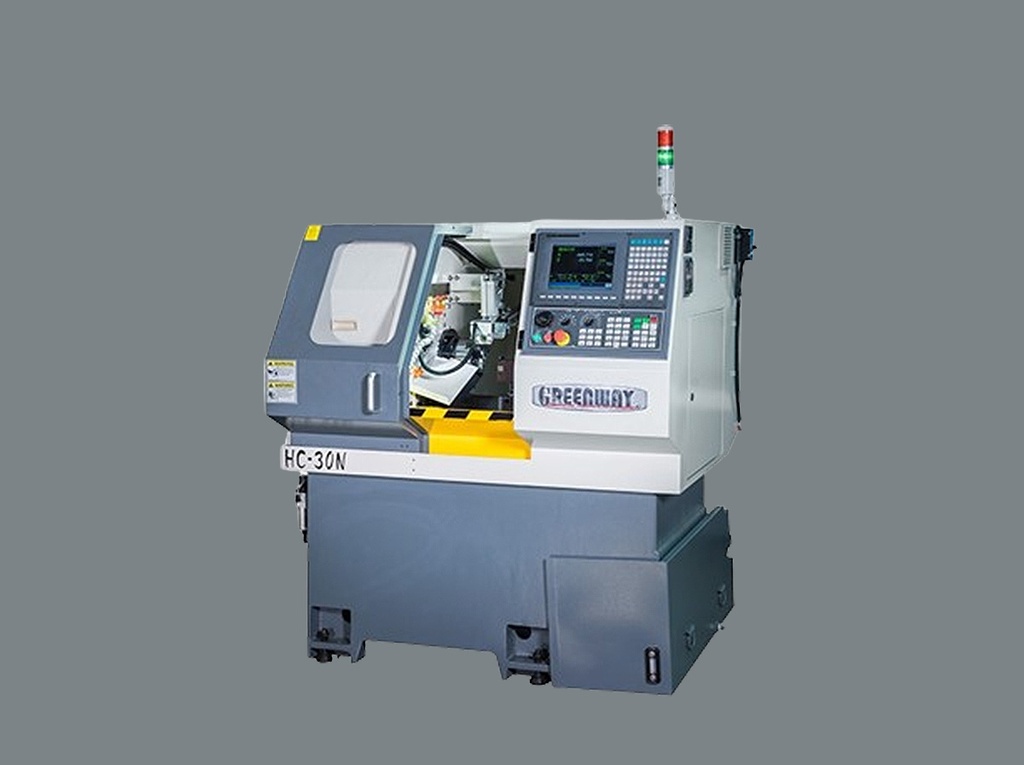

HC-30N F-type CNC lathe with Vibration bowl feeding system
Specification
| MODEL |
Unit | HC-30N-F |
| Swing over cross bed | mm | 250 |
| Max manufacturing dia. | mm | 110 |
| Max manufacturing length | mm | 200 |
| Spindle motor | KW | 3.75 (5.5 opt) |
| Spindle rotating speed | rpm | 3200 |
| X/Z-axis travel | mm | 300 |
| X/Z rapid travel speed | m/min | 20 |
| X/Z-axis servo motor | KW | 1 |
| X-axis Ballscrew | mm | Ø25 pitch10 |
| Z-axis Ballscrew | mm | Ø28 pitch8 |
| Bore of spindle | mm | 33Ø |
| Collet chuck | -- | C32 |
| Max. bar feeding DIA. | mm | 30Ø |
| O.D. turning tool size | -- | 20口 |
| I.D. turning tool size | -- | 20Ø |
| Machine net weight | KGS | 1750(kgs) |
| Machine size L×W×H | mm | 1570 x 1390 x 1600 |
| Powerful coolant pump | HP | 1 |
The above specifications and values are based on Gang-type CNC lathe.
All specifications, dimensions and design characteristics shown in this website are subject to change without notice.
Reference picture
Standard Accessory
Hydraulic cylinder coolant collector
Chip collection bucket
Syntec controller EZ-3
LNC controller 516i
Optional Accessory
All specifications, dimensions and design characteristics shown in this website are subject to change without notice.
Accessory
| MODEL | Standard accessories | Optional accessories | N/A |
| A2-4 spindle | ● | ||
| C-32 collet | ● | ||
| Lighting device | ● | ||
| Tools and tool box | ● | ||
| Base leveling block | ● | ||
| Auto lubrication system | ● | ||
| Gang type tool plate | ● | ||
| Tool holder for inner hole (ID Ø20) 3pcs | ● | ||
| Tool holder bush (IDØ6,8,10,12,16 / ODØ20) 1pcs / each | ● | ||
| Tool holder 20□(Upper/Lower ) | ● | ||
| No-material alarm indicating lamp | ● | ||
| Chip collection bucket | ● | ||
| SYNTEC EZ-11TA controller | ● | ||
| Auto finished parts collecting device | ● | ||
| Belt break detection device of spindle | ● | ||
| Electrical steel belt type chip conveyor | ● | ||
| Powerful coolant pump 1 HP | ● | ||
| CE specification | ● | ||
| Transformer | ● | ||
| 8-position servo turret | ● | ||
| Hydraulic cylinder detection device with coolant collector | ● |
All specifications, dimensions and design characteristics shown in this website are subject to change without notice.
